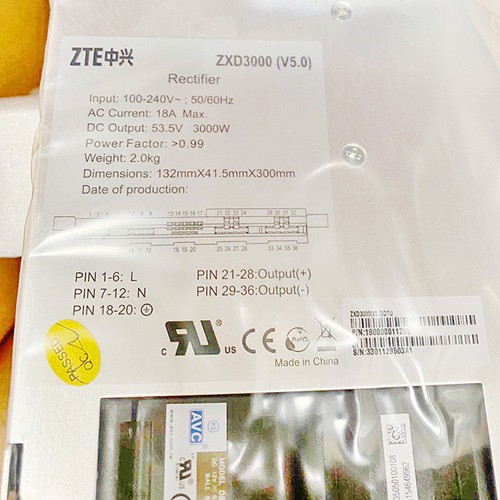

ZTE ZXD3000 Rectifier Module

ZTE ZXD3000 V5.0 3000W 48V rectifier module Power Supply ZXD3000 V5.0

Model Number: ZXD3000 V5.0

Type: Rectifier Module

Place of Origin: Guangdong, China

Brand Name: ZTE

Use: Telecom Power Supply

Input voltage: 100-240V

Frequency: 50/60HZ

AC Current: 18A

DC Output: 53.5V 50A

Power Factor: >0.99

Original Switching Power ZXD3000 V5.1 AC-DC Rectifier Module

ZTE ZXD3000 (V5.5) rectifier module 48V 3000W

ZTE ZXD3000 rectifier is a switching rectifier for communication, which is used to complete the output conversion from AC to DC. ZXD3000 rectifier. The rated output voltage is 53.5 V and the rated output power is 3000 W. ZTE ZXD3000 is usually used in the communication power supply system as the power core part of the communication power supply system.Determine the input and output indexes of the whole communication power supply system. ZXD3000 rectifier can be widely used in various exchange facilities.Equipment, mobile base stations and other communication equipment in the power supply system.

Original ZXD3000(V5.6) Adjustable rectifier module communication power 53.5V 50A Power supply

ZTE ZXD3000 (V5.6) rectifier automatically adjusts its operational status according to the AC input voltage.

The input features include the under-voltage protection, over-voltage protection, and power limit.
